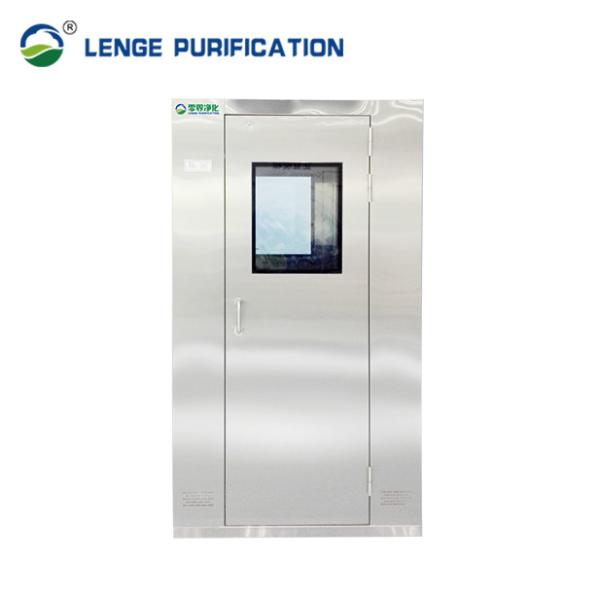

1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles
Technical Specification
Power supply: 380V50Hz
Power: 1.5kW
Noise: 65-75dB(A)
Button: Power supply (luminous ring visible buttons) with emergency stop
Mist Air Shower
-
Mist air shower will form a low flow of wet spray, can contaminate the work clothes of the raw material powder particles coating, continue to condense into large material particles.
-
The high speed airflow around the large particle material will prevent the dust particles from contacting the droplets, while the small droplets of the micro particles are easy to condense the dust particles.
-
Moisten all surfaces and form beads on clothing. As time goes on, the water drops gradually increase until they roll off the clothes.
Technical Specification
Cleanliness: Class D or higher
Temperature: 5°C~40°C

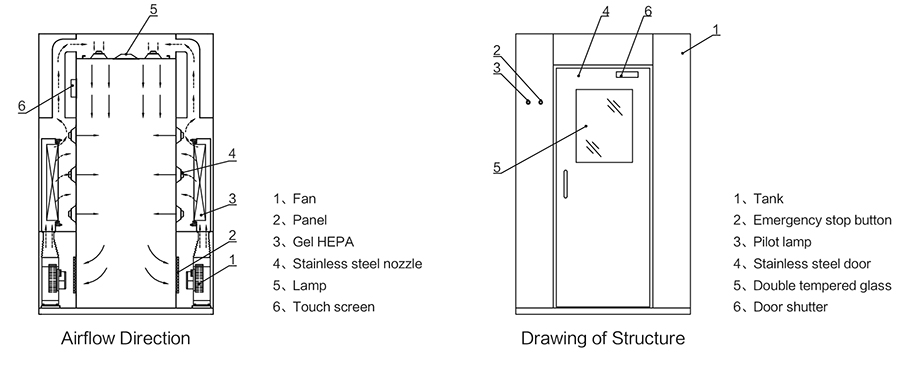

Product schematic diagram
Standard size and parameters
| Model | Overall size
W×D×H | Work area size
W×D×H | Air Volume (m/s) | Number of nozzles | HEPA size
L×W×D |
| ASR-080090 | 1200×1000×2150 | 800×900×1950 | 25 | 6 | 650×650×93×1 |
| ASR-080090 | 1400×1000×2150 | 800×900×1950 | 12 | 650×650×93×2 |
| ASR-080140 | 1400×1500×2150 | 800×1400×1950 | 18 | 955×650×93×2 |
| ASR-080190 | 1400×2000×2150 | 800×1900×1950 | 24 | 650×650×93×4 |
| ASR-080290 | 1400×3000×2150 | 800×2900×1950 | 36 | 955×650×93×4 |
Note: Air shower room and air shower channel not listed in the table can be made according to the customers' requirements
1. It adopts a fully automatic control operation, double-door electronic interlocking, induction automatic showering, and double-door locking when showering.
2. Cold plate plastic spraying series, using multi-layer pickling technology, electrostatic dust-free plastic spraying treatment.

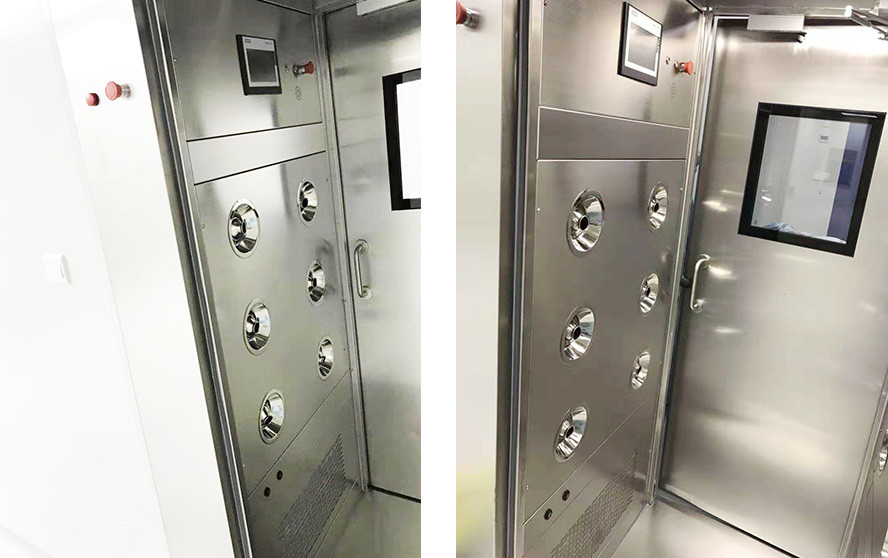

3. Stainless steel handle, thickened stainless steel bottom plate, and stainless steel nozzle are used as the basic configuration.
4. The digital display of the shower time is adopted, the air shower time is adjustable from 0 to 99s, and the air shower time has been displayed.
5. The wind speed of the air supply and shower system designed with a new design concept can reach a super strong wind speed of 25m/s~32m/s, ensuring that the personnel and goods entering the clean room can achieve the perfect effect of thorough dust removal.
|
|
